Brand Name : GUKE
Model Number : zax330 zax350 Cylinder Seal Kit
Certification : ISO 9001
Place of Origin : China
MOQ : 1KIT
Price : MANAGER
Payment Terms : T/T ,Western Union ,Paypal, Xtransfer
Supply Ability : 500kits per week
Delivery Time : 3-7 days after payment
Packaging Details : PP bag inside ,Carton box outside
OEM : Accpetable
Stock : In stock
Hardness : 92Degree
Certifiion : ISO9001
Part Name : Excavator Cylinder Seal Kit
Model : ZX250 ZX330 ZX350 ZX470 Cylinder Seal Kit
Part No : 4649051
Feature : Oil Resistance Heat Resistance
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as N OK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
Product Overview | |
Name: | ZAX330 ARM Cylinder Seal Kit |
Condition | 100% New |
Material: | PU |
Machine Model: | HITACHI ZX330 ZX350 ZX470 |
Part Number: | 4649051 |
Size: | Standard Size |
Hardness: | 90degree |
Temparature: | -30 ℃To 120 ℃ |
Feature: | Heat Resistance,Oil Resistance |
Certification: | ISO 9001 |
Raw Material: | HUNTSMAN of German ZEON of Japan |
OEM: | Accpetable |
vailablity: | In Stock |
Shipping: | Express,By Air,By Sea |
APPLICATION CHART
PARTS List
Pos. | PartNo | Qty | Partsname |
4628635 | 1 | CYL.;ARM | |
1 | 975401 | 1 | TUBE;CYL.ASS'Y |
1A. | +++++++ | 1 | TUBE;CYL. |
1B. | 4630702 | 2 | BUSHING;PIN |
2 | 975402 | 1 | ROD;PISTONASS'Y |
2A. | +++++++ | 1 | ROD;PISTON |
2B. | 4630702 | 2 | BUSHING;PIN |
3 | 975405 | 1 | HEAD;CYL. |
4 | 352704 | 1 | BUSHING |
5 | 133103 | 1 | RING;RETAINING |
6 | 975406 | 1 | RING;BACK-UP |
7 | 975407 | 1 | U-RING |
8 | 975408 | 1 | RING;BACK-UP |
9 | 4438200 | 1 | RING;WIPER |
10 | A811160 | 1 | O-RING |
11 | 4170546 | 2 | RING;BACK-UP |
12 | 875605 | 12 | BOLT;SOCKET |
13 | 975409 | 1 | BRG.;CUSHION |
14 | 975410 | 1 | SEAL;CUSHION |
15 | 917105 | 1 | PISTON |
16 | 4170547 | 1 | RING;SEALASS'Y |
16A. | +++++++ | 1 | RING;SEAL |
16B. | +++++++ | 1 | O-RING |
17 | 875607 | 2 | RING;BACK-UP |
18 | 975411 | 2 | RING;SLIDE |
19 | 259307 | 2 | RING;SLIDE |
20 | 450511 | 1 | SHIM |
21 | 917106 | 1 | NUT |
22 | 353012 | 1 | SCREW;SET |
23 | 353011 | 1 | BALL;STEEL |
24 | 975412 | 1 | BRG.;CUSHION |
25 | 937410 | 1 | SEAL;CUSHION |
26 | 492212 | 2 | STOPPER |
27 | 975413 | 1 | RING;SNAP |
29 | 4337631 | 4 | RING;WIPER |
30 | 975415 | 1 | PIPE |
31 | 975416 | 1 | PIPE |
32 | 984614 | 2 | O-RING |
33 | M341236 | 8 | BOLT;SOCKET |
34 | 975417 | 1 | BAND |
34 | 975403 | 1 | BAND |
35 | 975418 | 1 | BAND |
35 | 975404 | 1 | BAND |
36 | J901035 | 2 | BOLT |
37 | A590910 | 2 | WASHER |
38 | 309219 | 2 | CLAMP;PIPE |
39 | 237417 | 2 | BOLT |
40 | 208516 | 2 | WASHER;SPRING |
41 | 271312 | 1 | FITTING;GREASE |
100 | 4649051 | 1 | KIT;SEAL |
![]() |

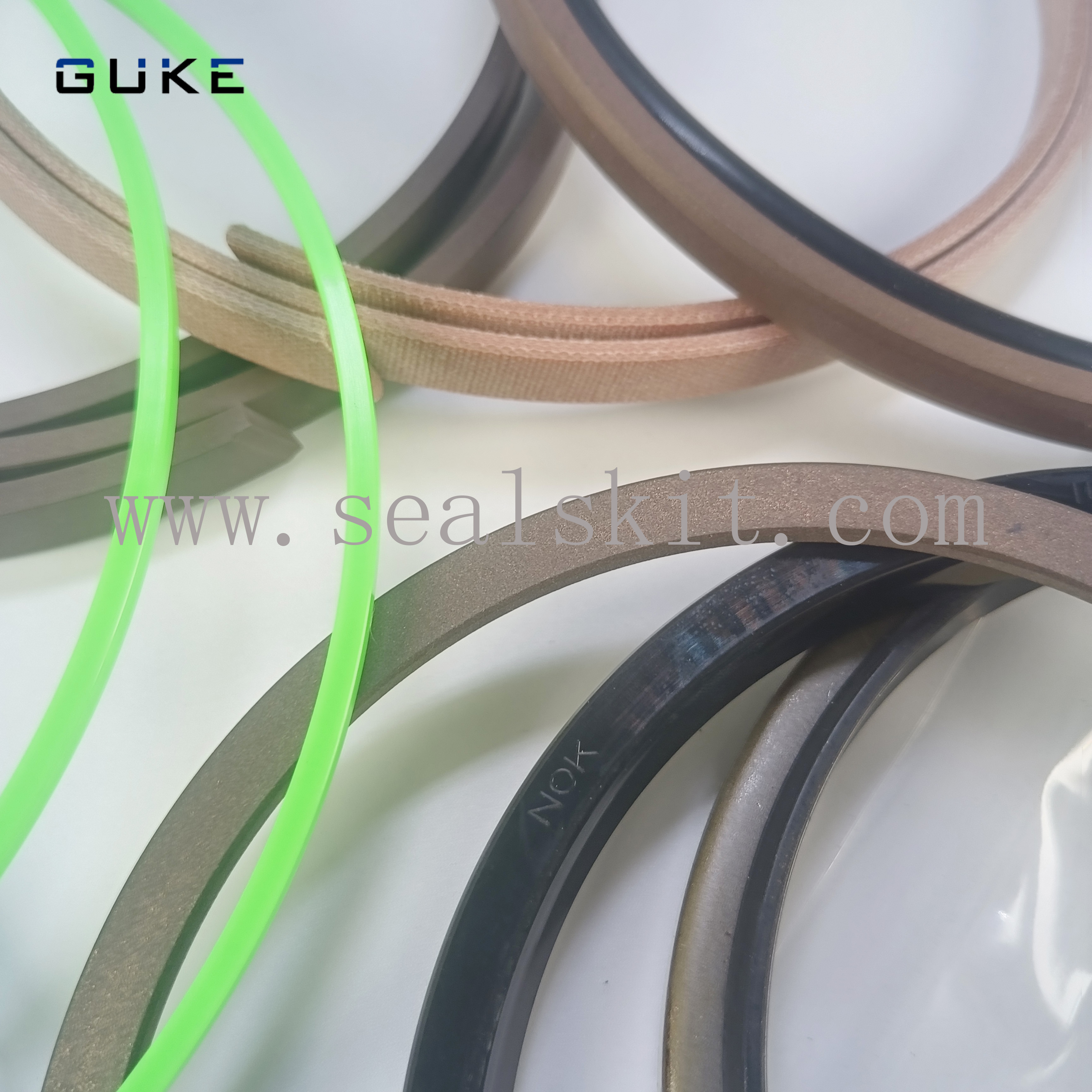

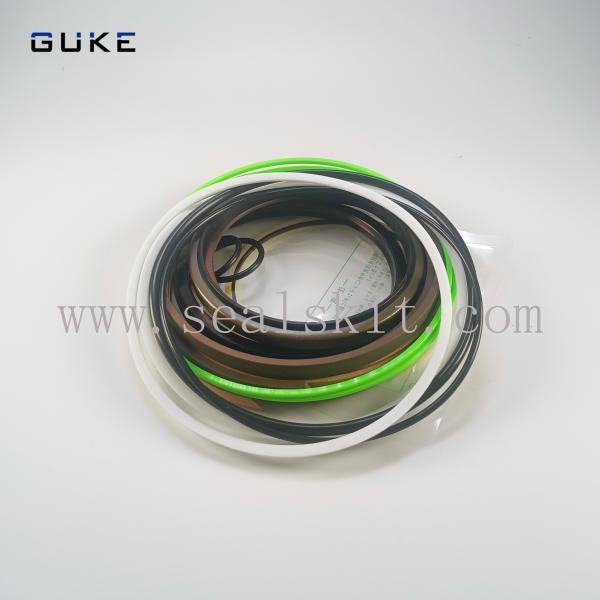

4649051 Hitachi Excavator ZX330 ZX250 ZX350 ZX470 Cylinder Seal Kit 4649051 Images |
